Blackening free
The panel does not darken behind heated glass. Anyone who has put a standard display in a sunlit window has already seen that failure once.
DNAT Co., Ltd. · Made in Korea
Displays that stay readable where the light wins
Custom DID displays on high-brightness LCD — up to 5000 nit, from 29 to 86 inch. Behind shop glass, out in the weather, or cut to a shape nobody stocks. Every SET is made to order.
5000 nit
Peak brightness
29 –86 ″
Panel sizes
IP65
Outdoor rating
4
Product lines
A manufacturer, not a catalogue
DNAT builds custom DID displays on high-brightness LCD. We do not sell you the nearest thing on a shelf: panel size, brightness, interface and housing are agreed per project and the SET is built for it. Our own line covers bar-type and square cut panels alongside the standard formats, which is why we end up in the installations other suppliers turn down.
Cut to the opening, not to a catalogue
Bar, square and round panels are cut to the format the installation needs, and the driver electronics matched to what is left. That is how a display ends up in an opening a standard rectangle cannot fill.
Panel technology
Why an M+ panel survives a shop window
Four product lines
Pick the environment, not the product code
Window Display
Indoors behind the glass wall, facing the street. 32–75 inch, 2500 to 5000 nit, with a light sensor that tracks ambient brightness.
Outdoor Display
55 inch digital bulletin board at 4000 cd/m². IP65 sealed, with heater, cooling fan and remote control.
Indoor Display
Mirror-finish touch kiosks and bar-type modules for retail, hospitality and public interiors.
Special Display
Cut panels — round, bar, square — from 32 to 86 inch, for the places a rectangle does not fit.
UHD line-up
Where each brightness lands
A short version of the UHD range. The full FHD and UHD tables, including the bar formats, are on the line-up page.
| Resolution | Brightness | BLU | Polarizer | |
|---|---|---|---|---|
| 43 ″ | 3840 × 2160 | 1000 nit | Edge | Normal |
| 43 ″ | 3840 × 2160 | 2000 nit | Direct | Normal |
| 49 ″ | 3840 × 2160 | 2500 nit | Direct | Normal |
| 55 ″ | 3840 × 2160 | 1000 nit | Edge | Normal |
| 55 ″ | 3840 × 2160 | 2500 nit | Direct | Normal |
| 65 ″ | 3840 × 2160 | 2500 nit | Direct | Normal |
| 75 ″ | 3840 × 2160 | 3000 nit | Direct | QWP |
Reference values. Final SET specification is agreed per project.
Installed
Where our panels ended up
Commercial interior, panel running

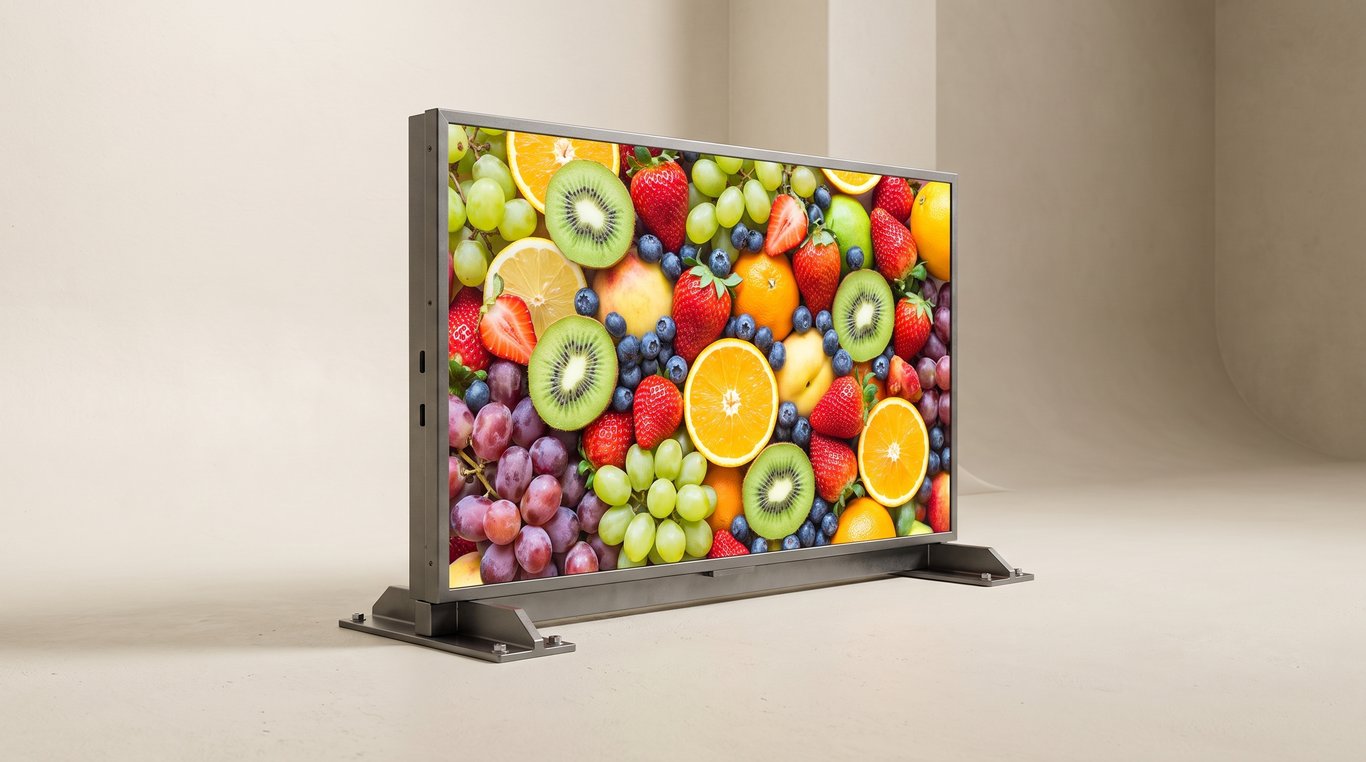

Custom panel and enclosure after fitting

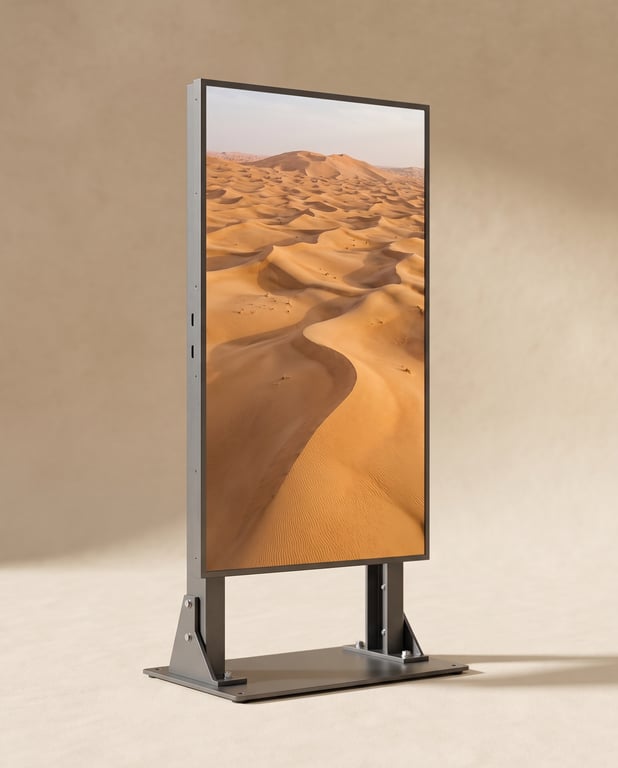

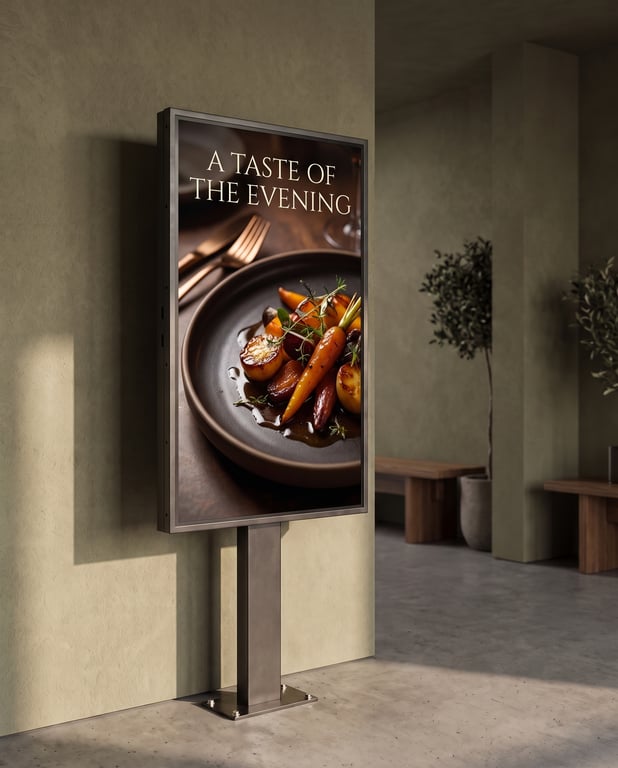

Signage running in a bright space

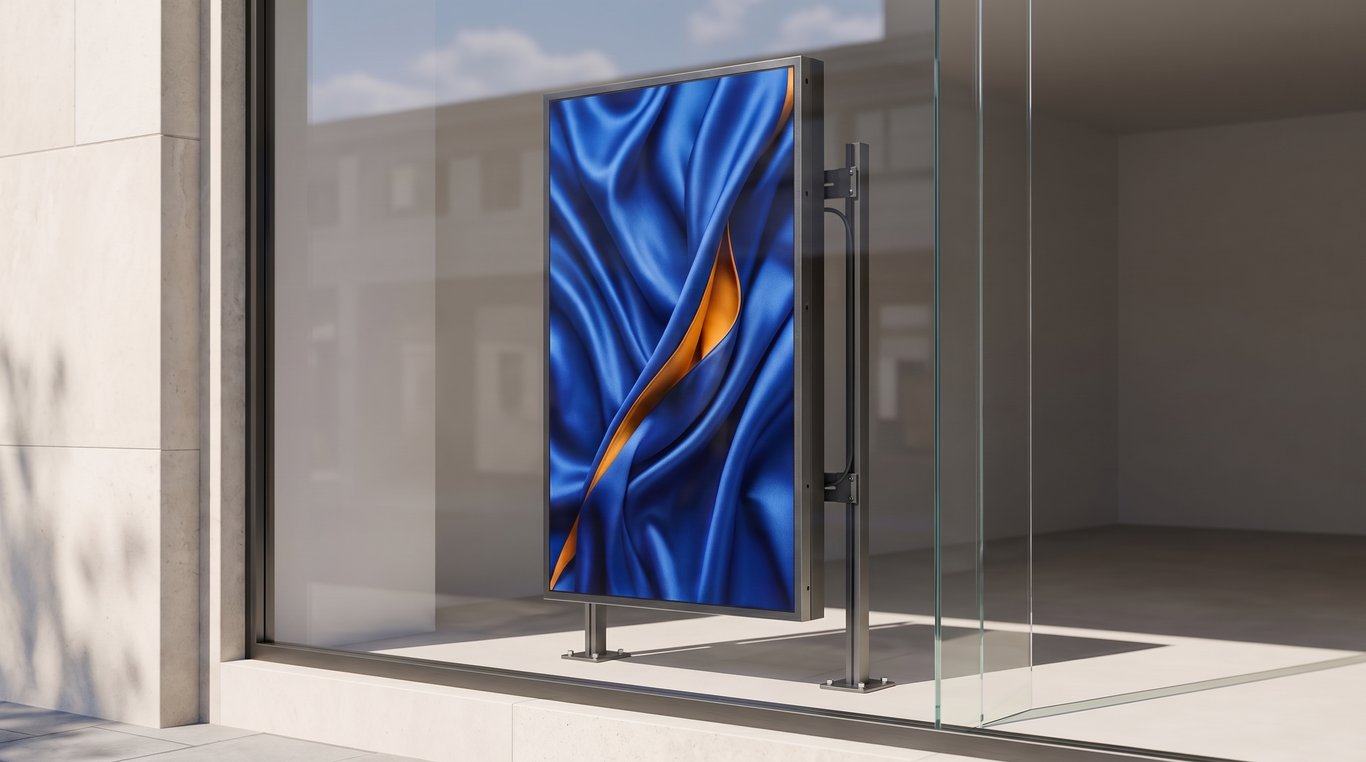

Shop window, daylight readable

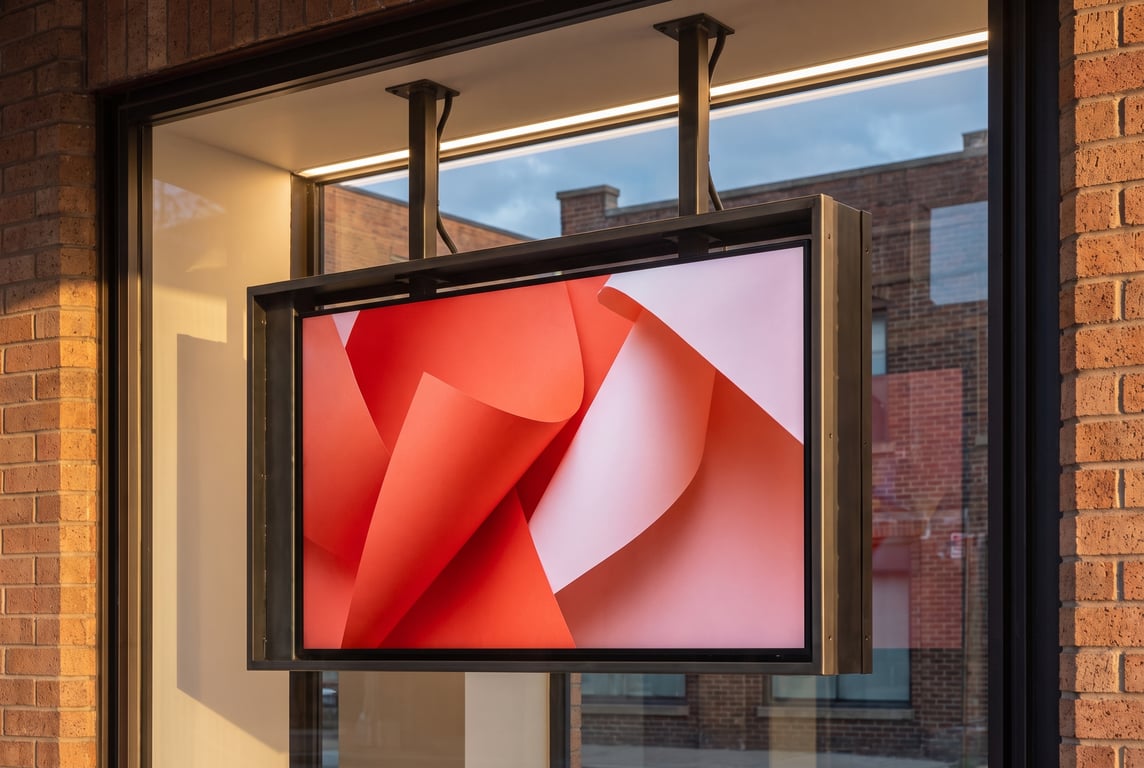

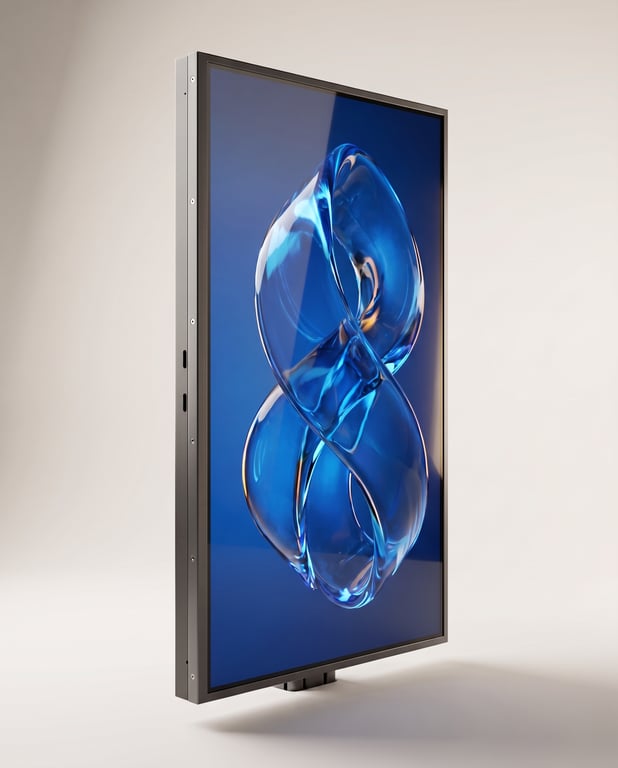

Panel fitted into a custom enclosure

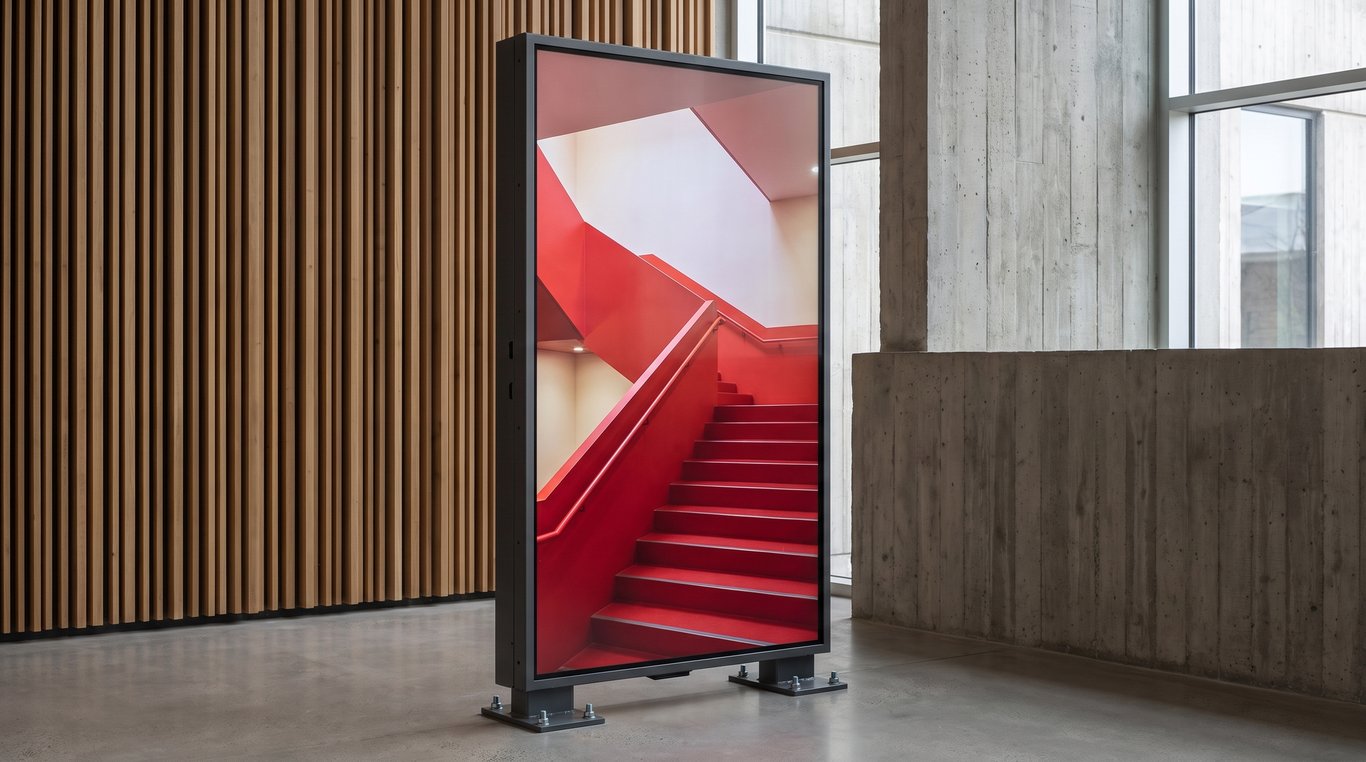

Indoor installation, switched on
Public space signage

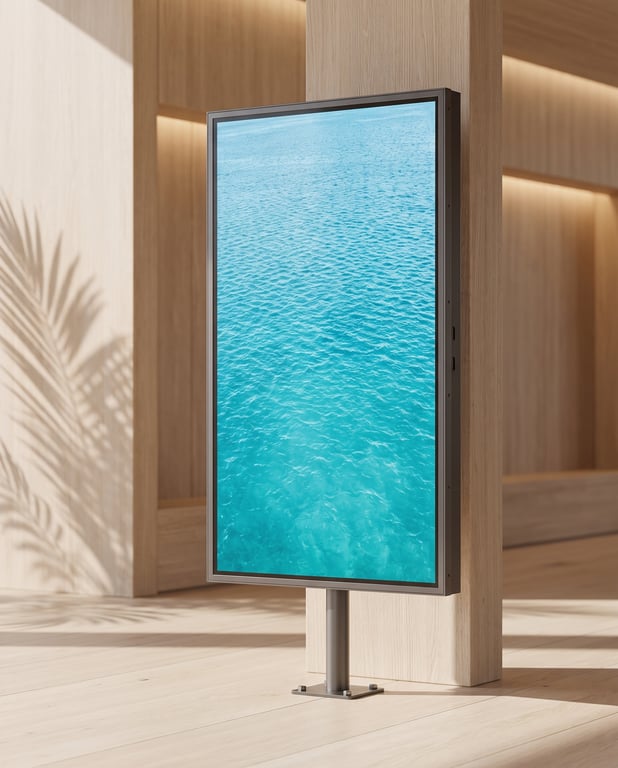

Panel close-up, in operation

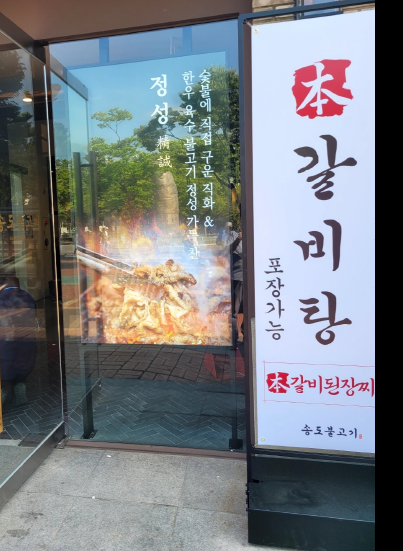

Restaurant window, street-facing in daylight

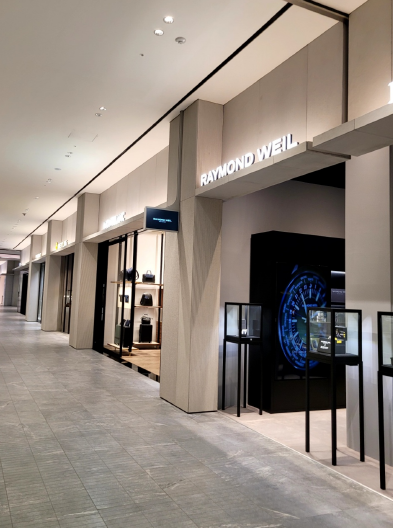

Watch boutique, mall corridor

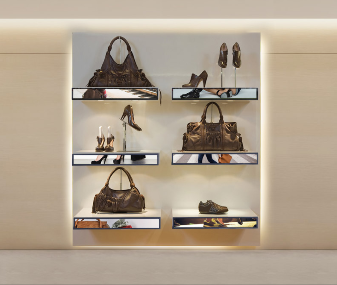

Bar-type modules in retail shelving

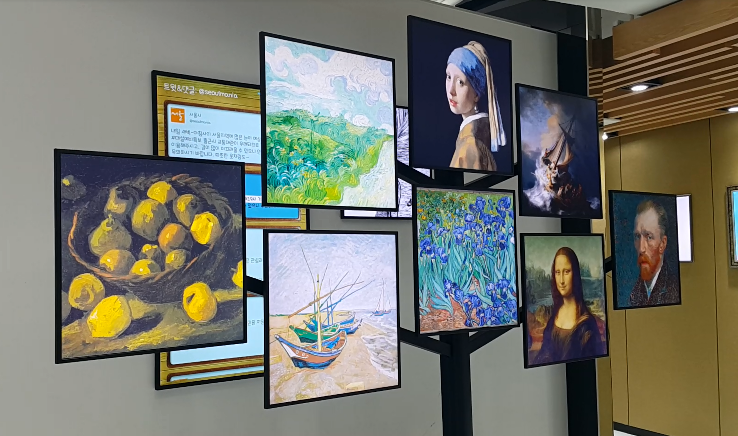

Gallery wall in cut-panel formats

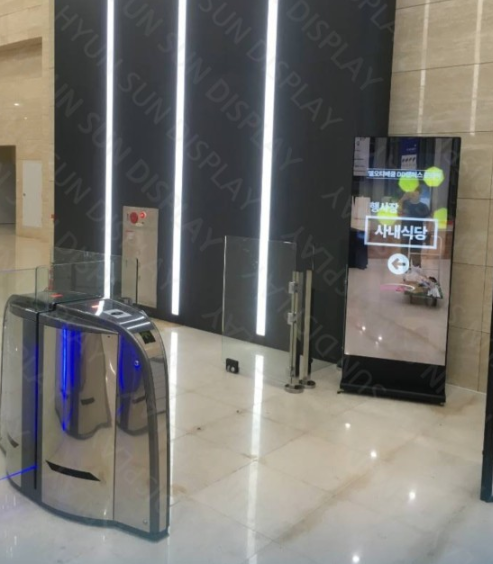

Office lobby wayfinding kiosk

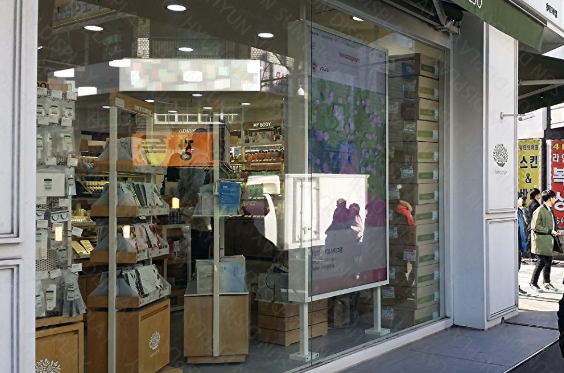

Cosmetics store window, portrait panel

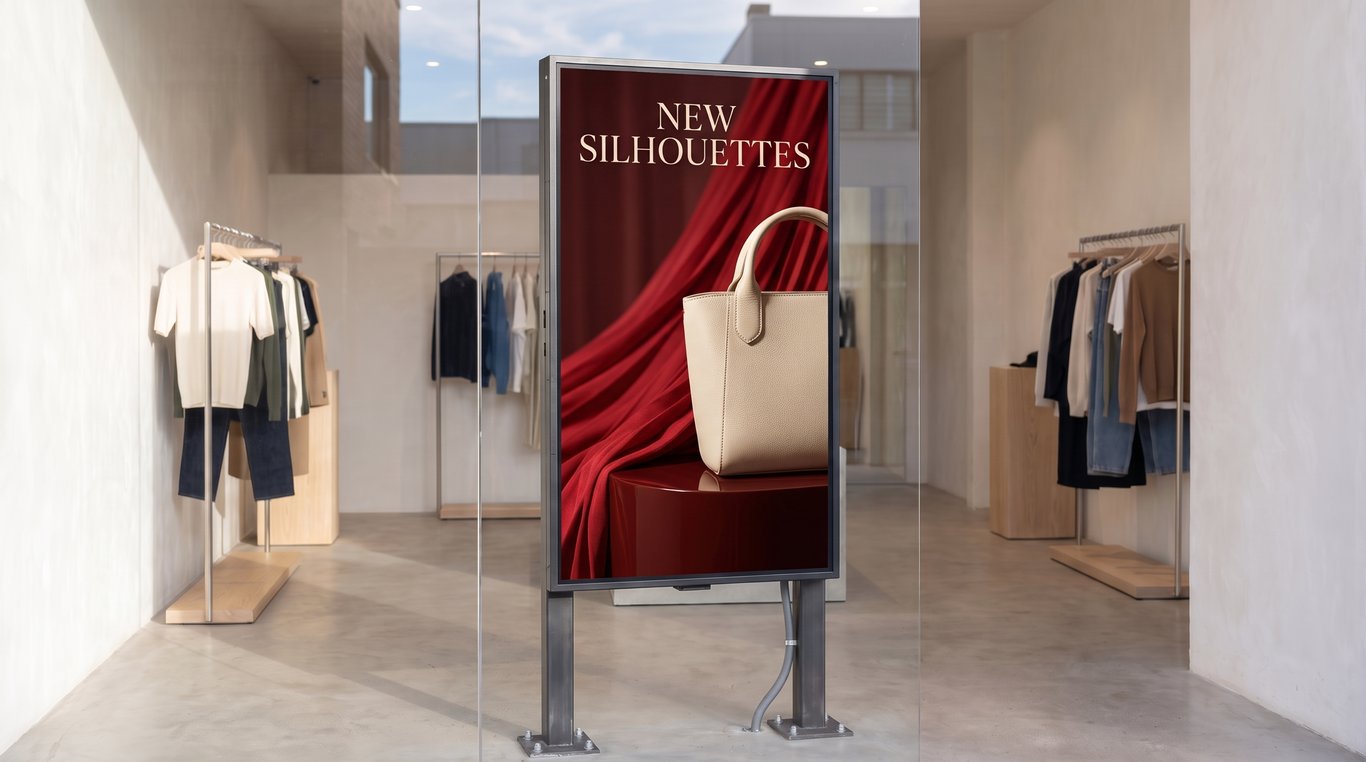

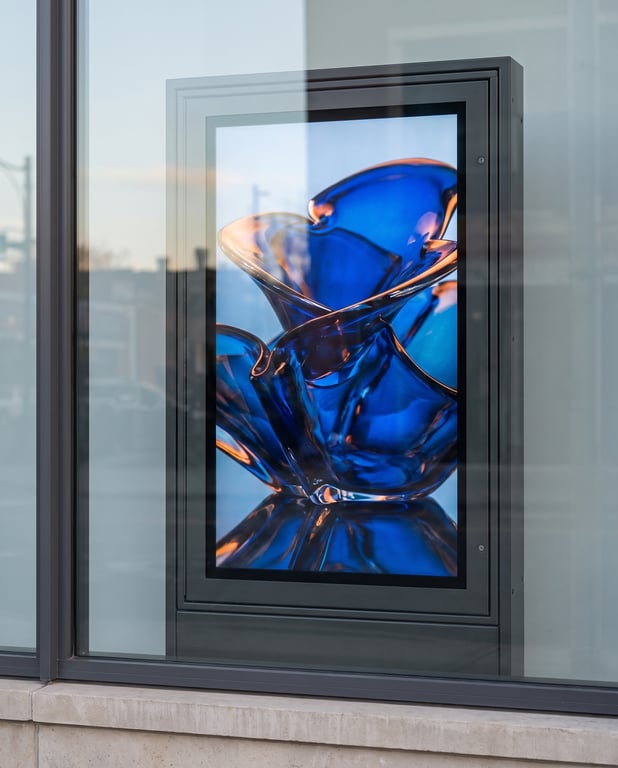

Retail window, product image in daylight
Bar format in an architectural opening

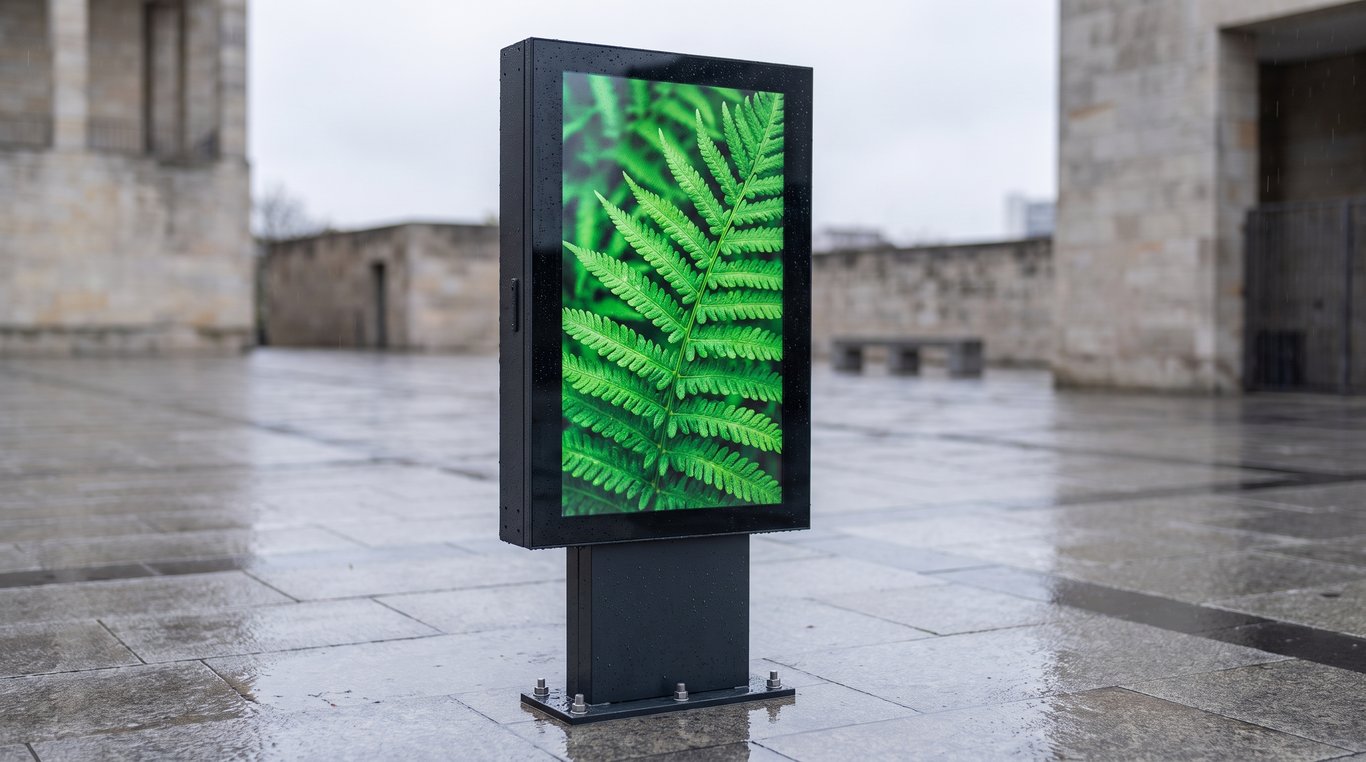

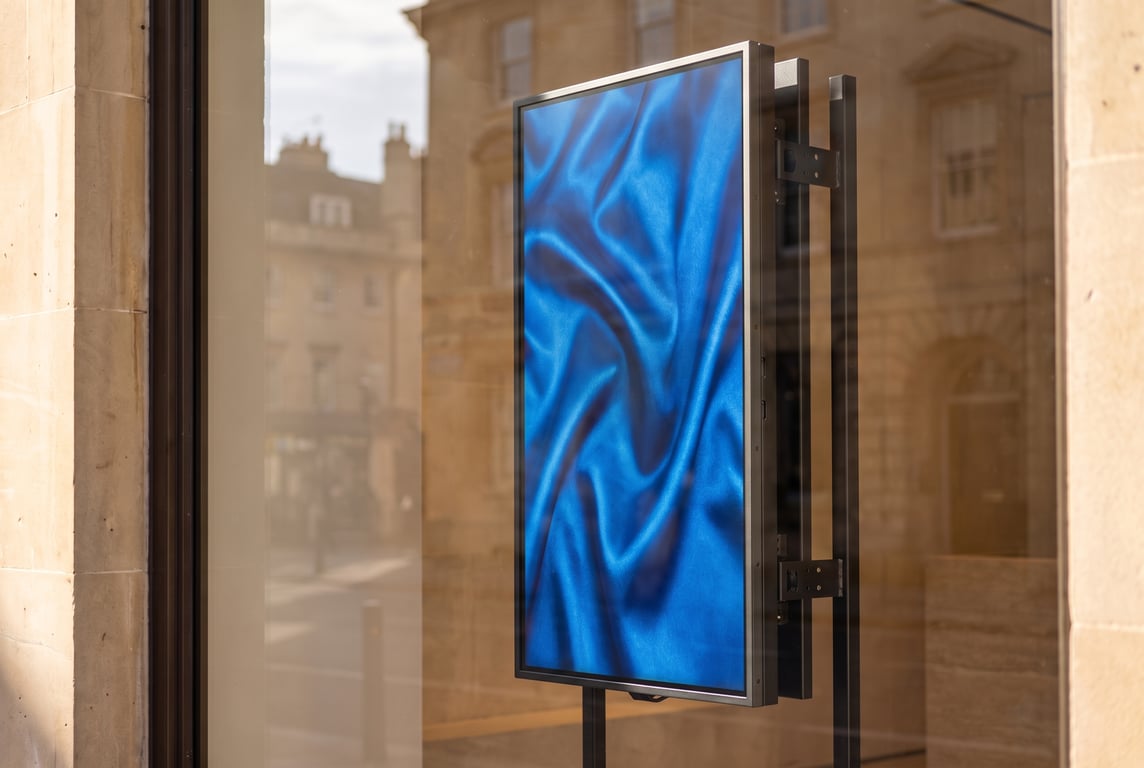

Outdoor bulletin board, IP65
Mirror touch kiosk, hotel lobby
Retail interior installation

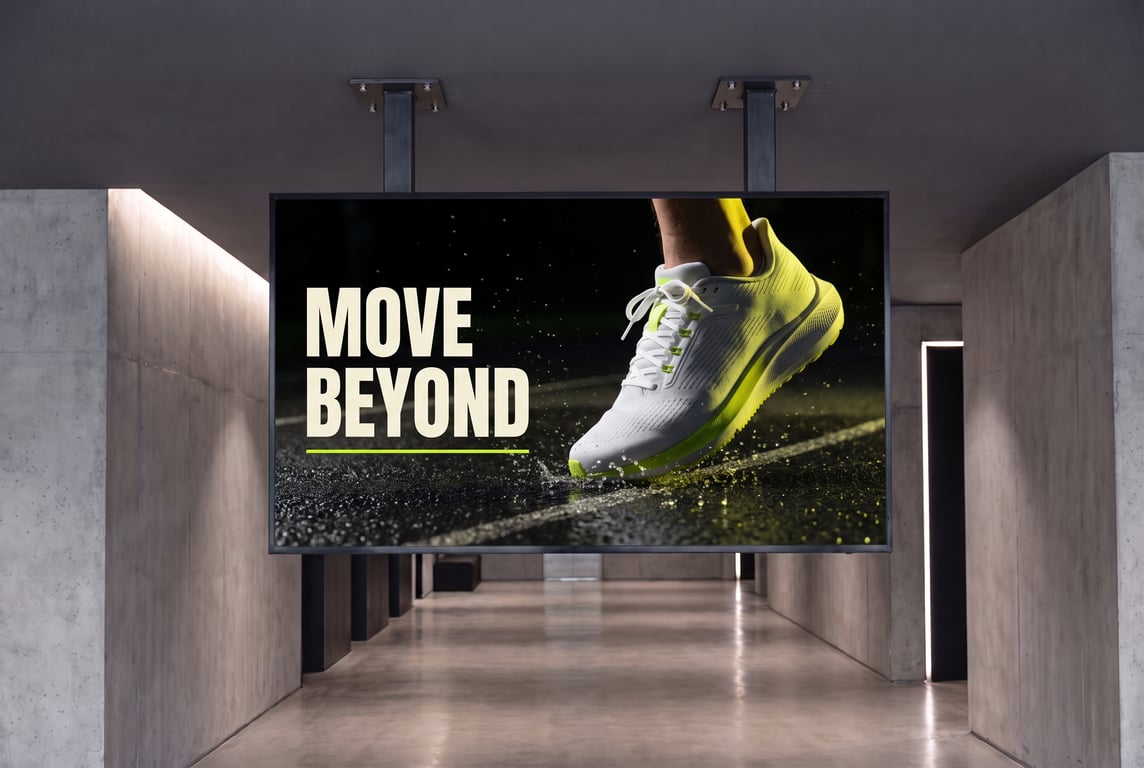

Large wall-mounted display
Digital signage in a busy space
Panel and mounting frame, detail

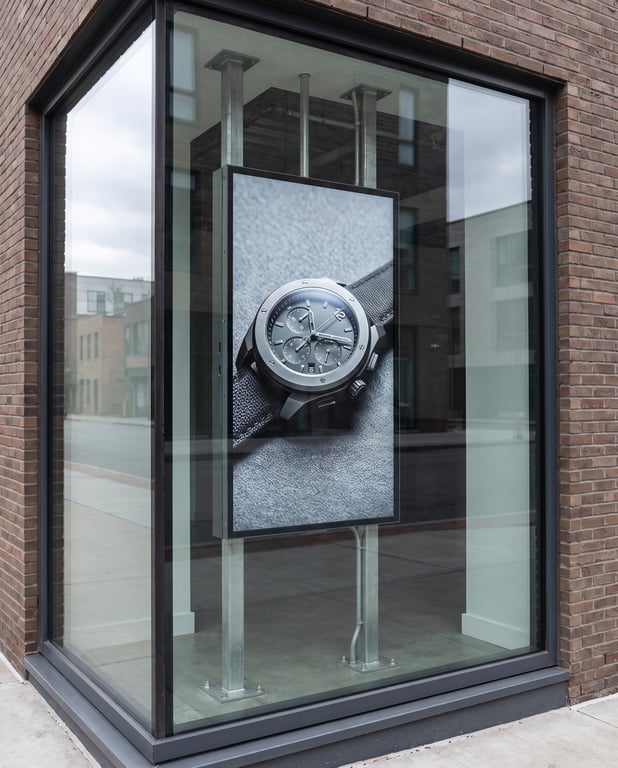

Angled view of an installed display
How an order runs
From brief to built SET
01
Tell us where it goes
Indoor behind glass, outdoors, or cut to shape. The environment decides the brightness and the sealing before anything else does.
02
We agree the specification
Size, brightness, interface, housing and PC configuration, in writing, before we build.
03
We build the SET
Panel, driver kit, sensors and housing assembled and tested as one unit in Korea.
04
Delivery and mounting
Shipped with the mounting structure on the frame; the customer mount interface is agreed per project.
The questions buyers ask first
Indoors away from windows, 700 to 1000 nit is enough. Behind glass facing a street, 2500 nit is the floor and 4000 to 5000 nit is what survives direct sun. Fully outdoors, plan on 4000 cd/m² and IP65.
Often yes. Our own production covers cut panels — bar, square and round formats — from 32 to 86 inch. Tell us the opening you have to fill.
The whole SET: panel, A/D board kit and SMPS, mounting structure on the frame, and the light and temperature sensors as parts. Housing and interface are agreed per project.
In our own facility in Hwaseong-si, Gyeonggi-do, Republic of Korea.
Yes. We quote per project, including the mount interface, so the shipment matches the installation you have planned.
Send us the environment, not just the size
Tell us how much light the display has to fight and we will tell you which panel does it.
Request a quote
Tell us where the display goes and how much light it has to fight. That is the part that decides the panel.
